IEC 61340-5-1
ESD lab coats
Woven coats in 63% polyester, 33% cotton and 4% carbon, 125–130 g/m². Many lengths, sleeves, colours and contrast trims.
The lab coat is the centre of the range. It is cut in our mill from a woven cloth of 63% polyester, 33% cotton and 4% carbon conductive yarn, at 125–130 g/m², with a 5 mm conductive grid.
Electrical performance: surface resistance 10⁵–10⁷ Ω, and charge decay from 1000 V to 50 V in under 2 seconds. The coat is specified for washing at 60 °C and for 100 washes. It meets or exceeds IEC 61340-5-1.

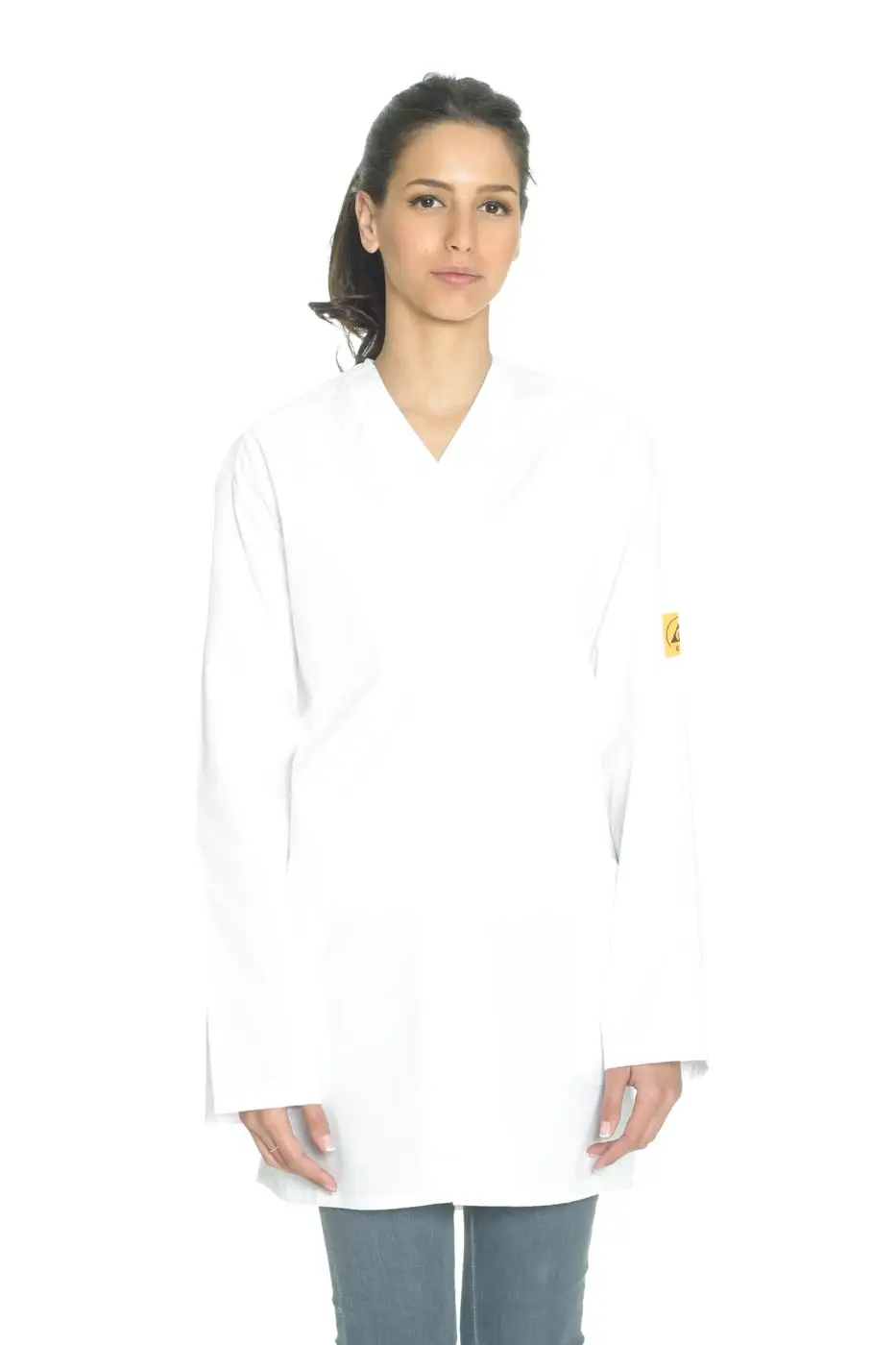

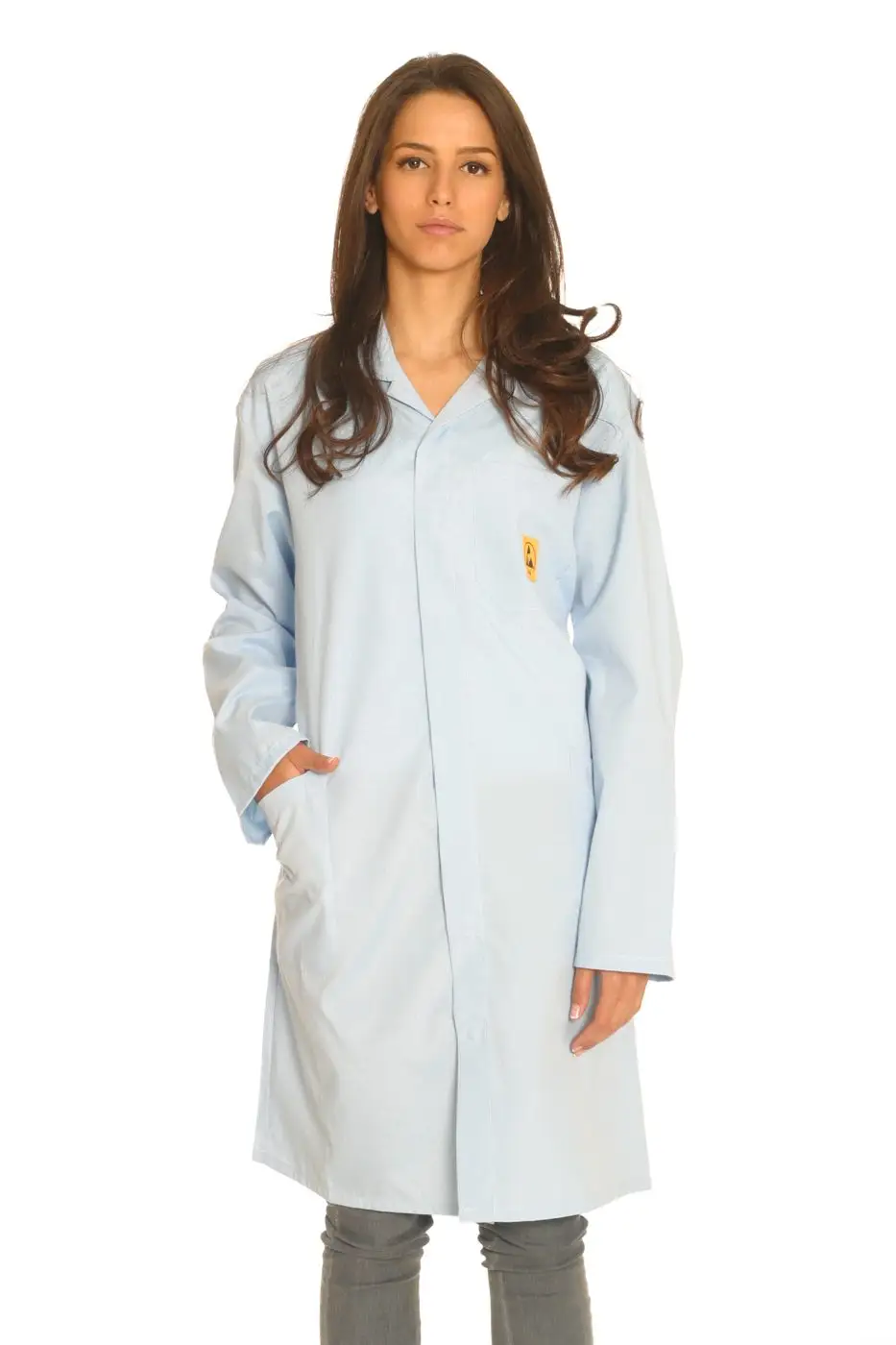

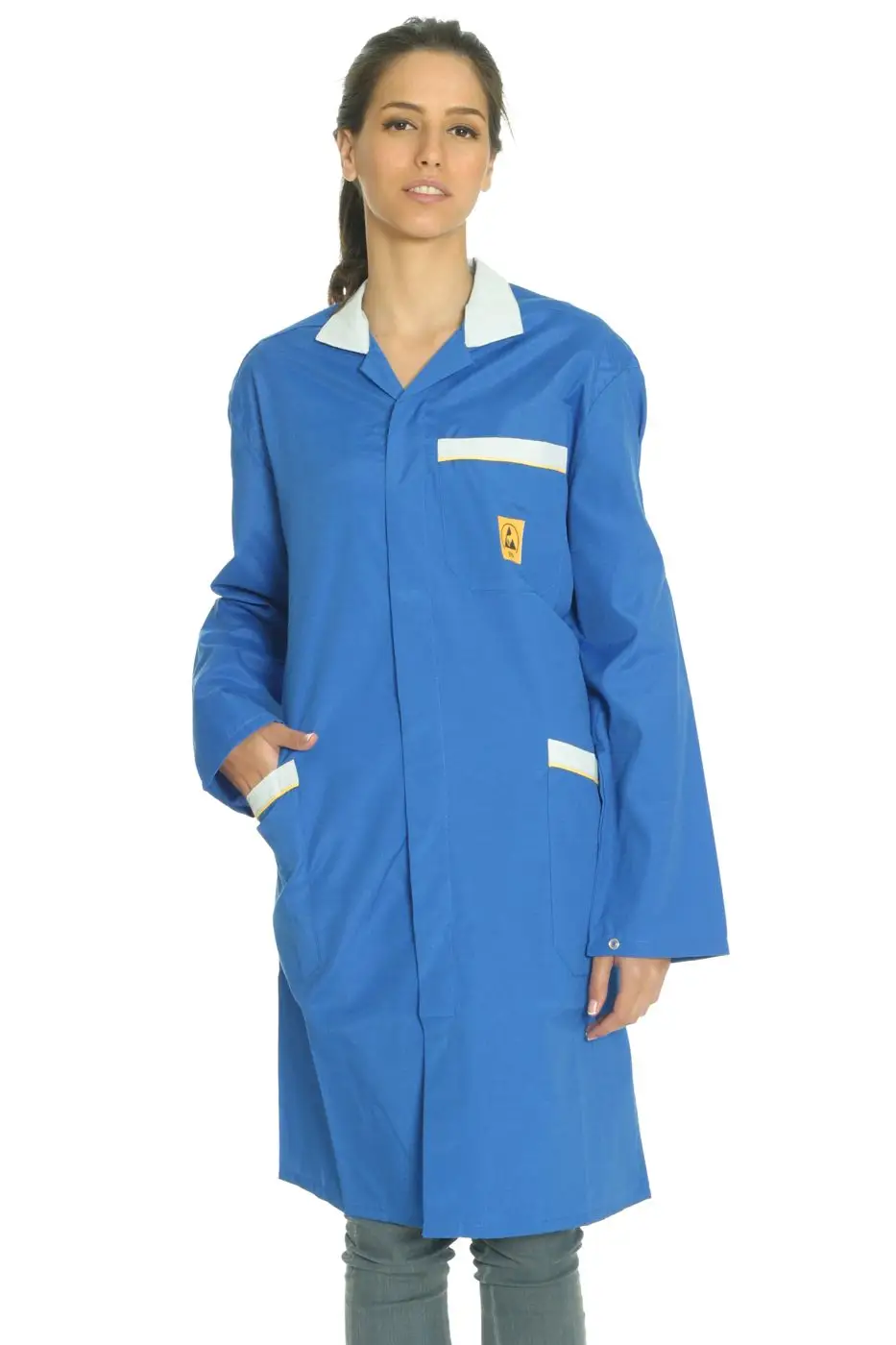

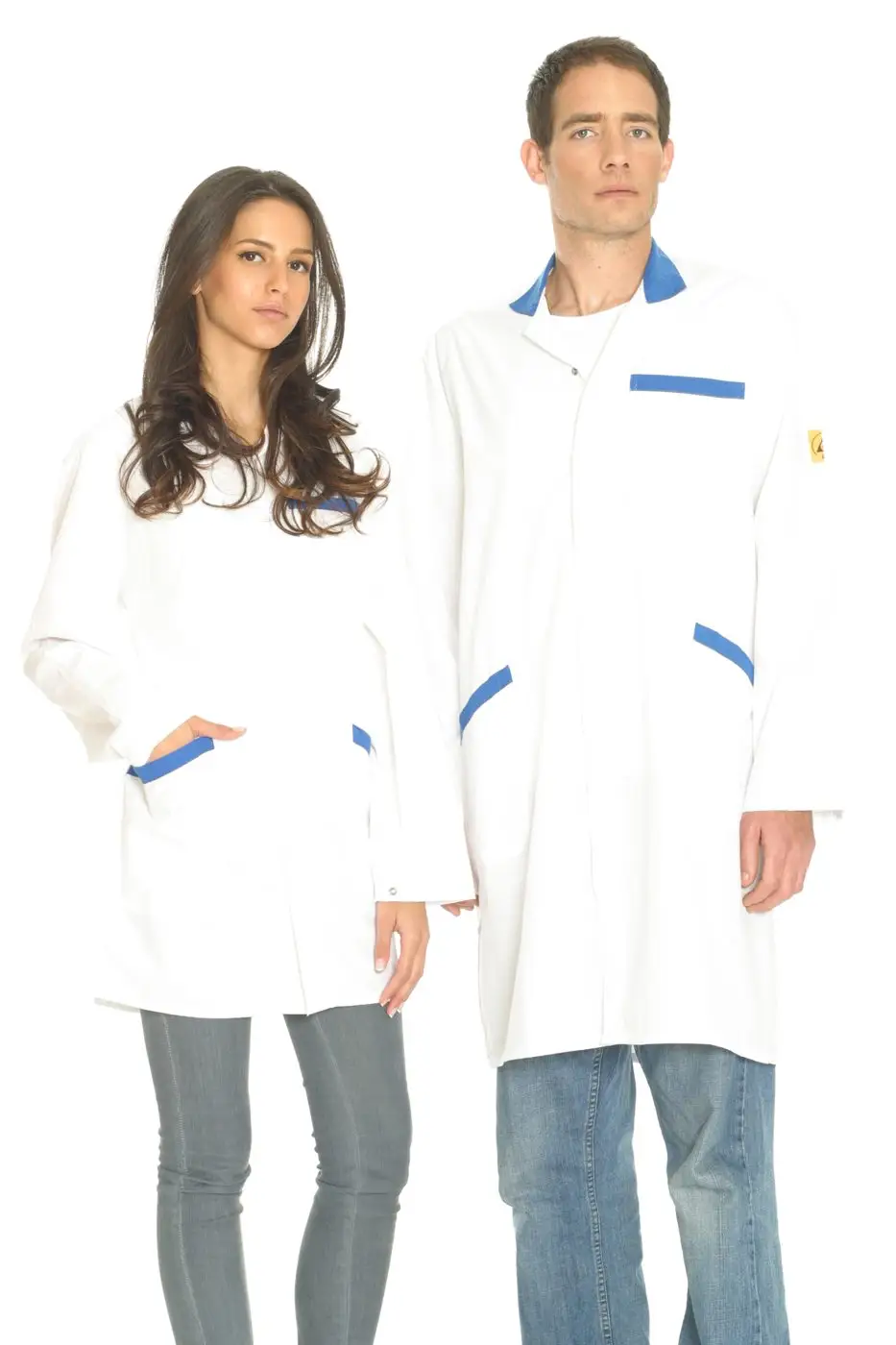

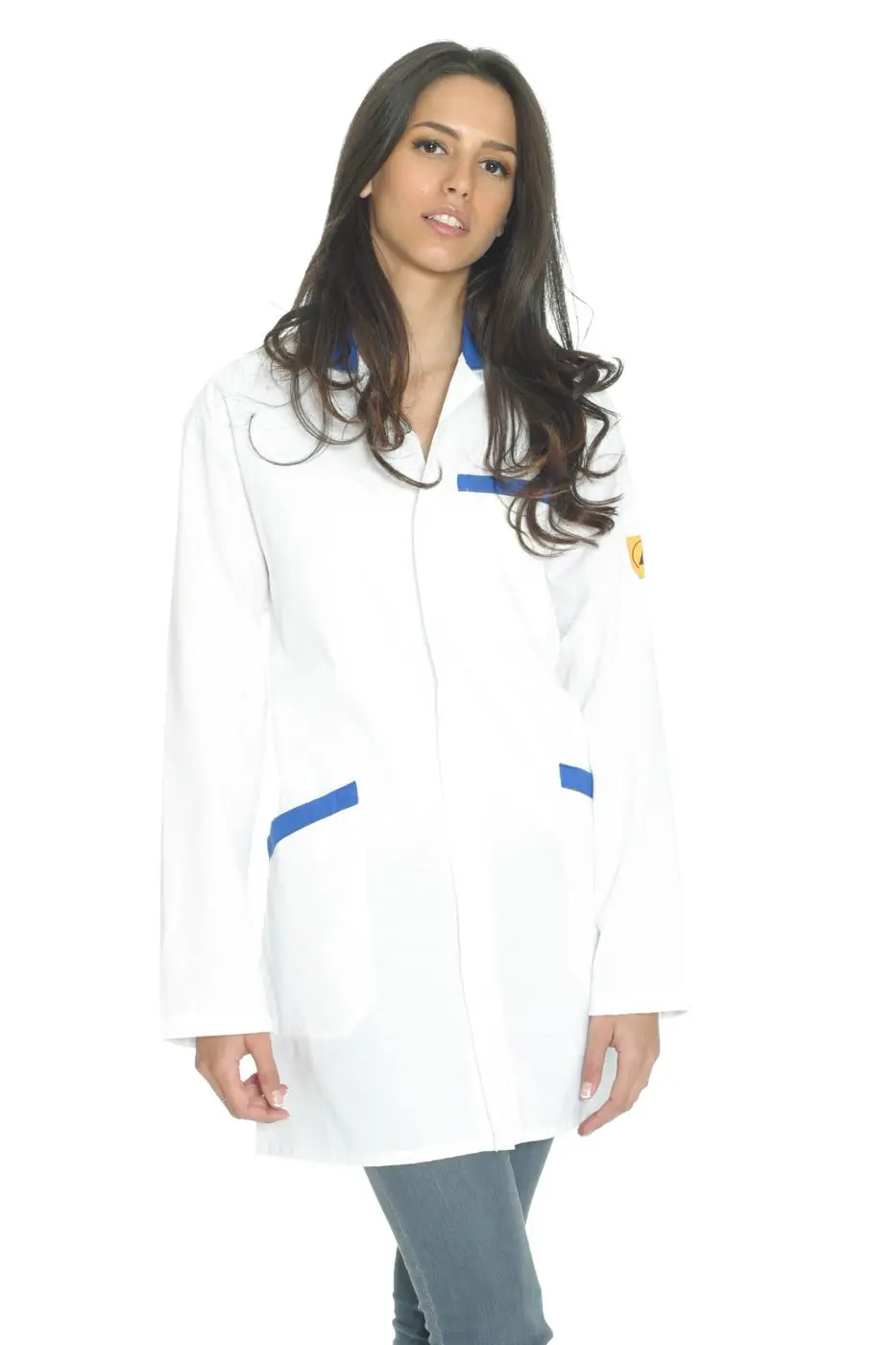

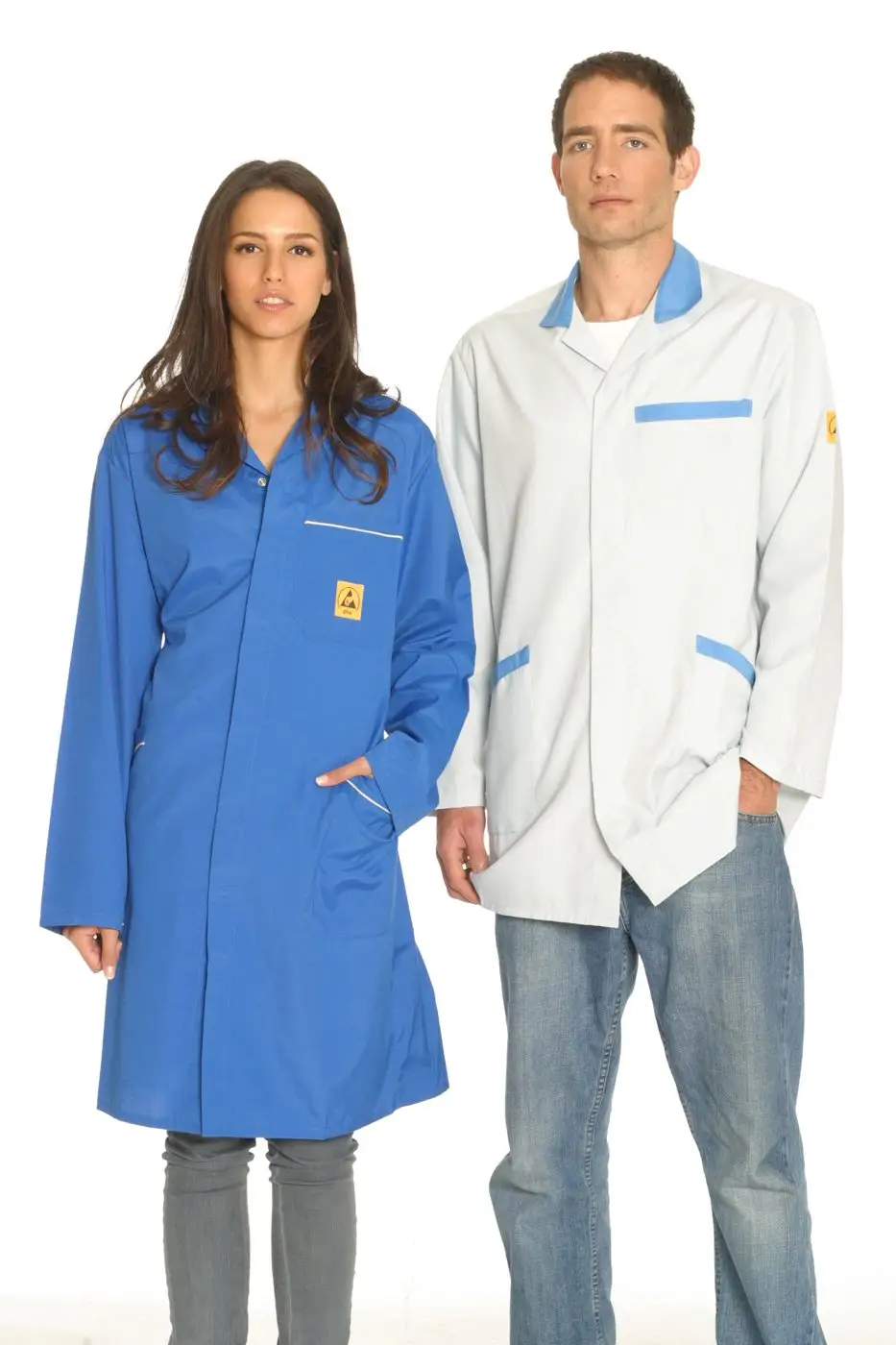

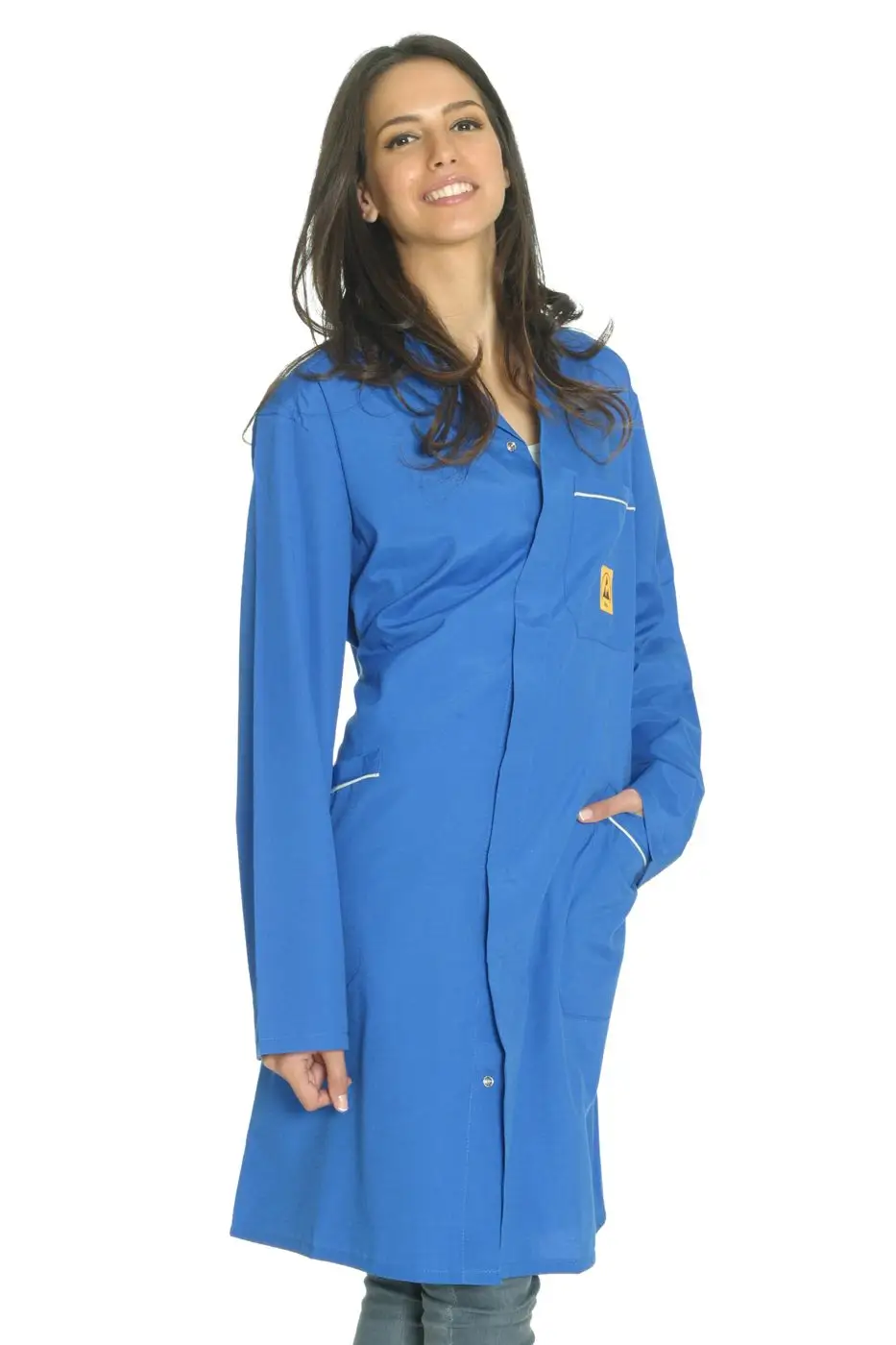

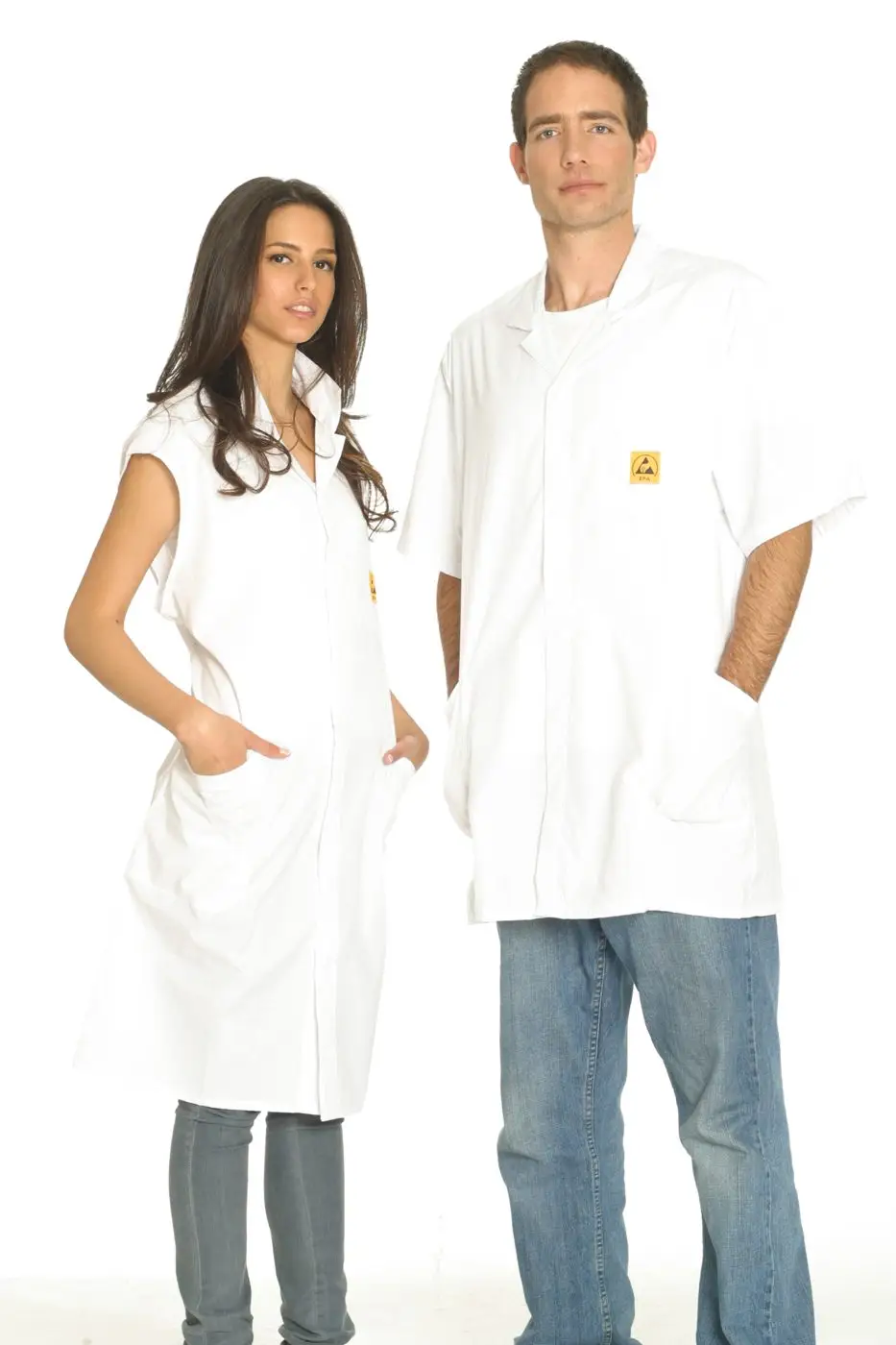

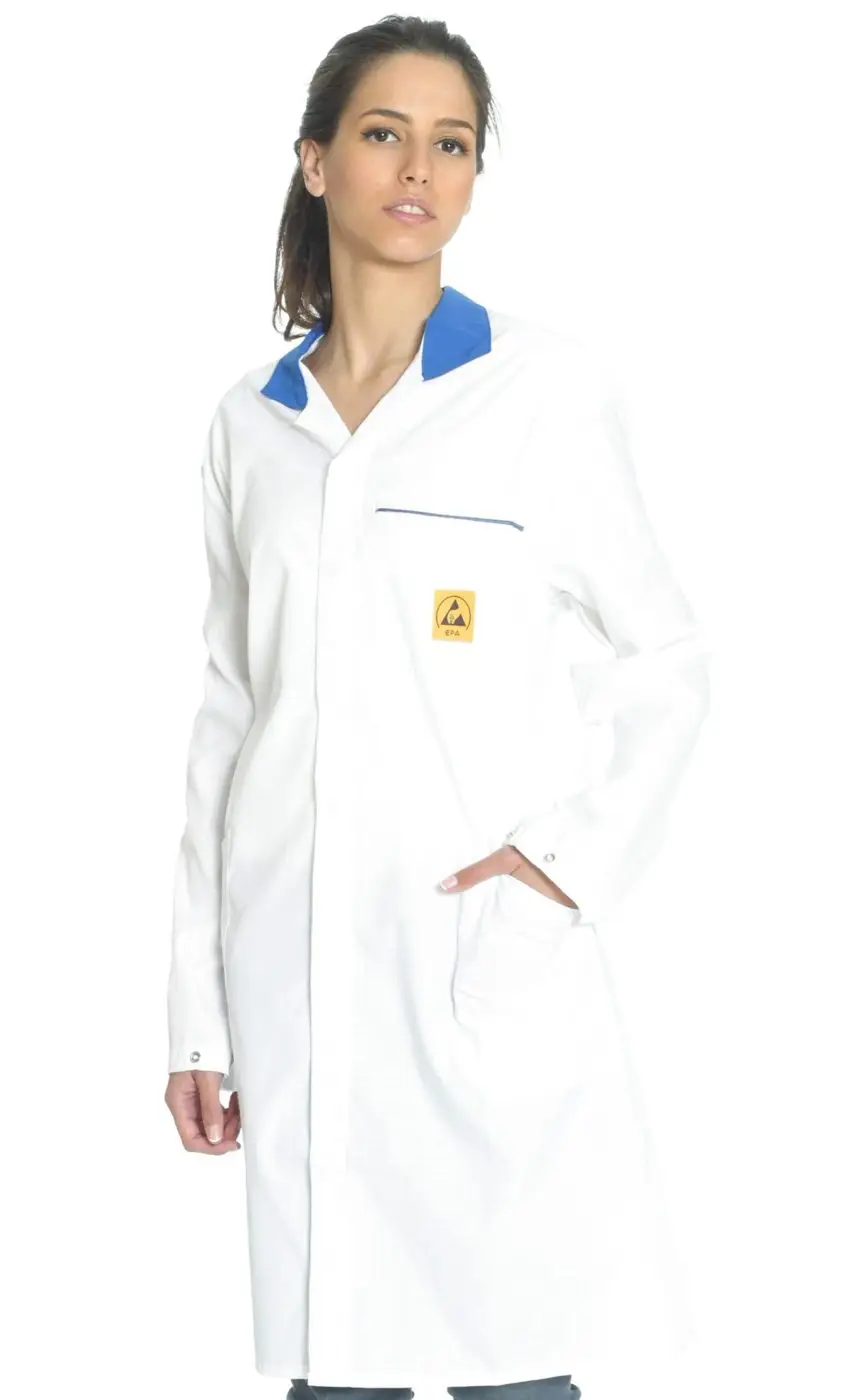

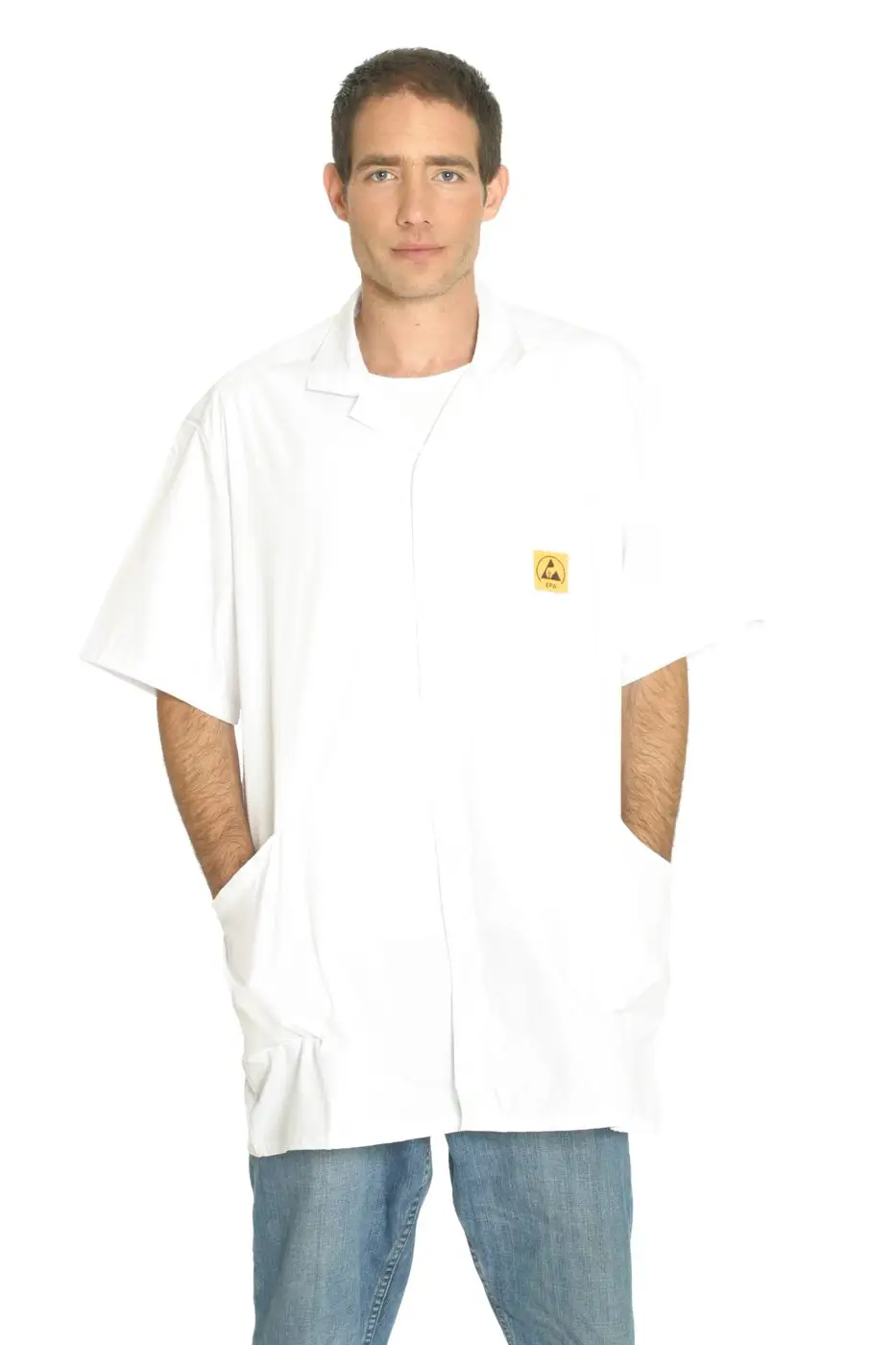

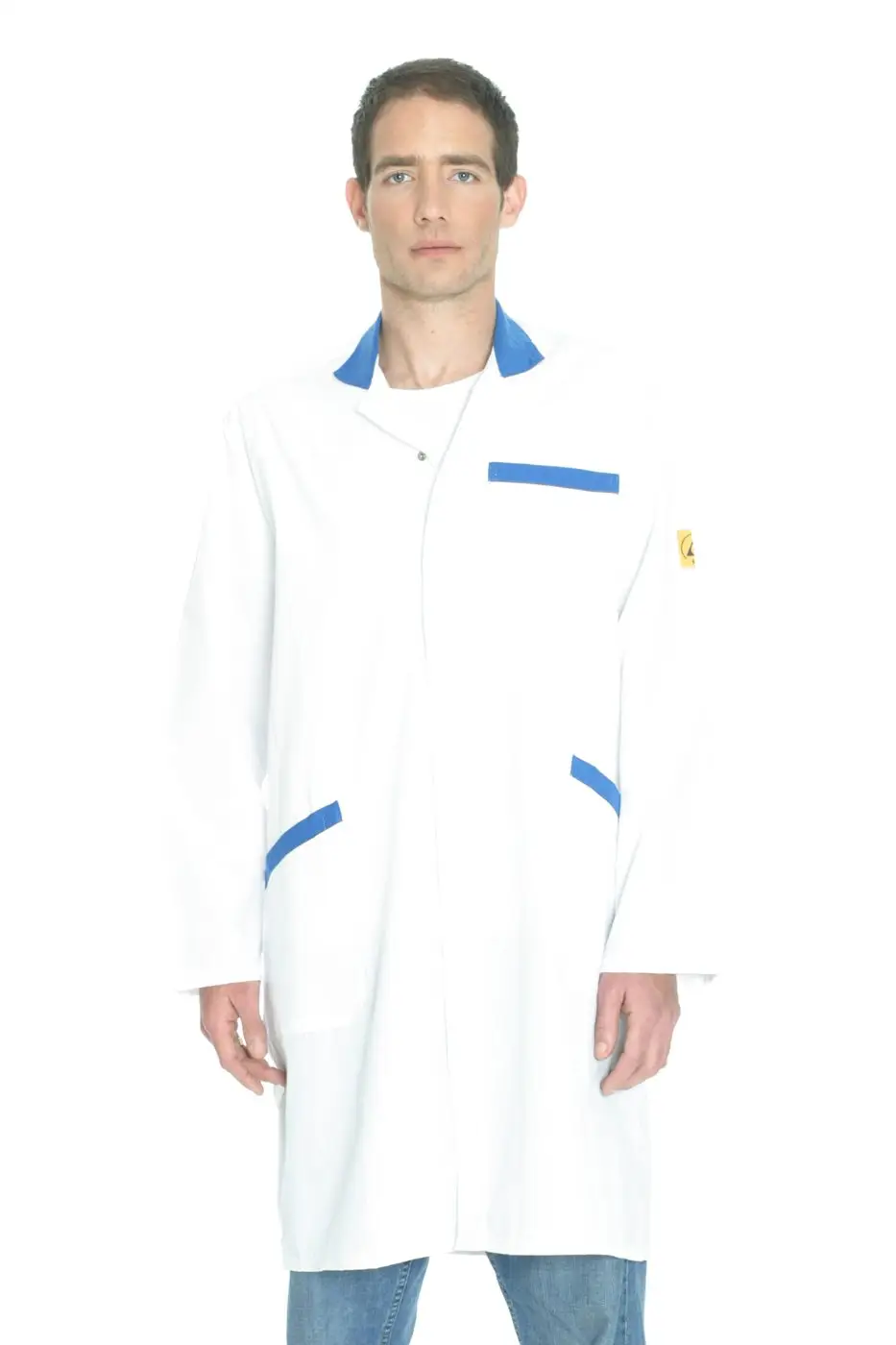

Lengths and sleeves follow the catalogue: half length, three-quarter length and long, with long sleeves, short sleeves or sleeveless, V-neck or round neck, pockets and contrast trims. A breast pocket carries the ESD symbol. The front closes with a hidden snap. The cut is unisex.
Colours

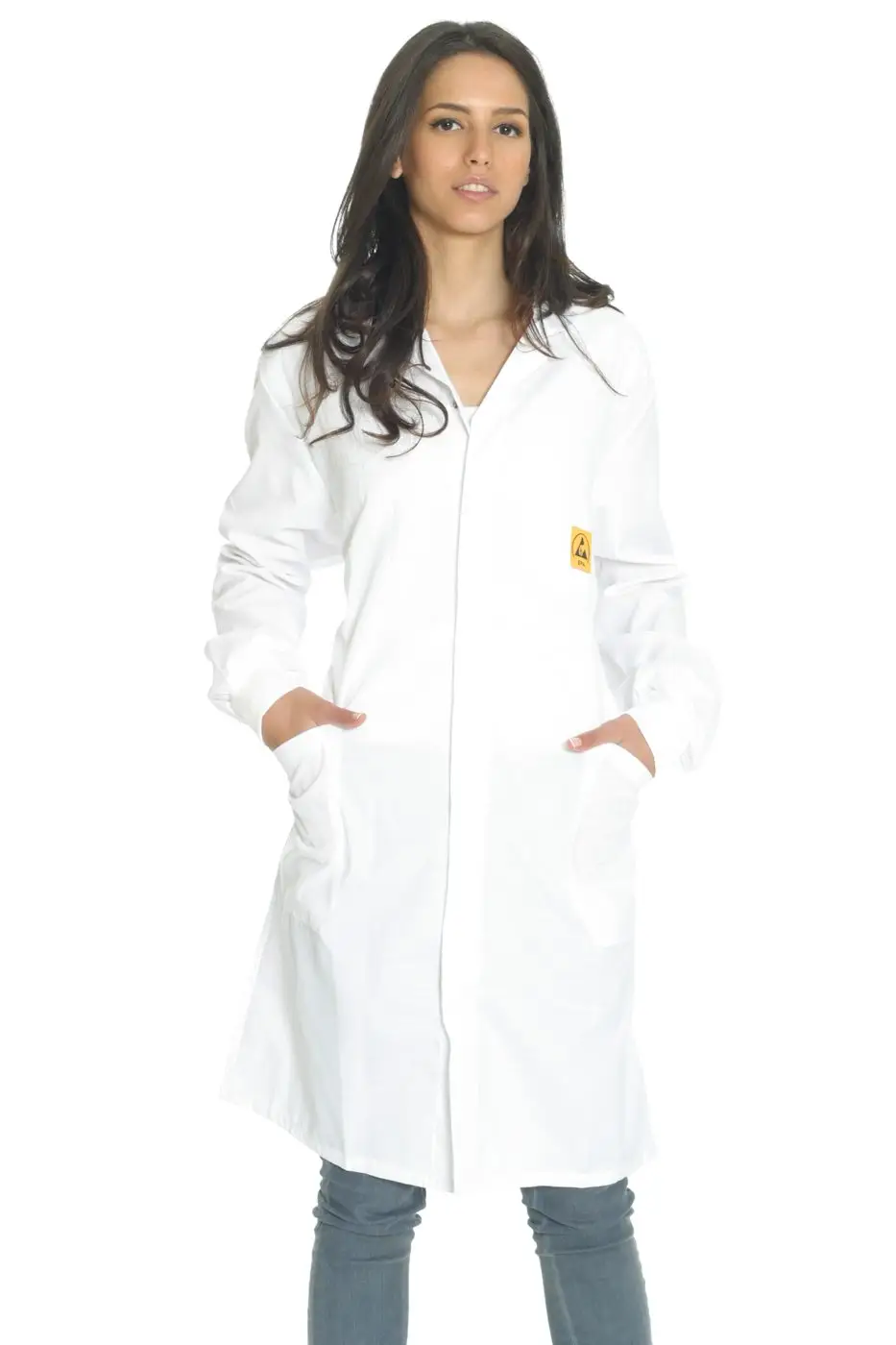

- White

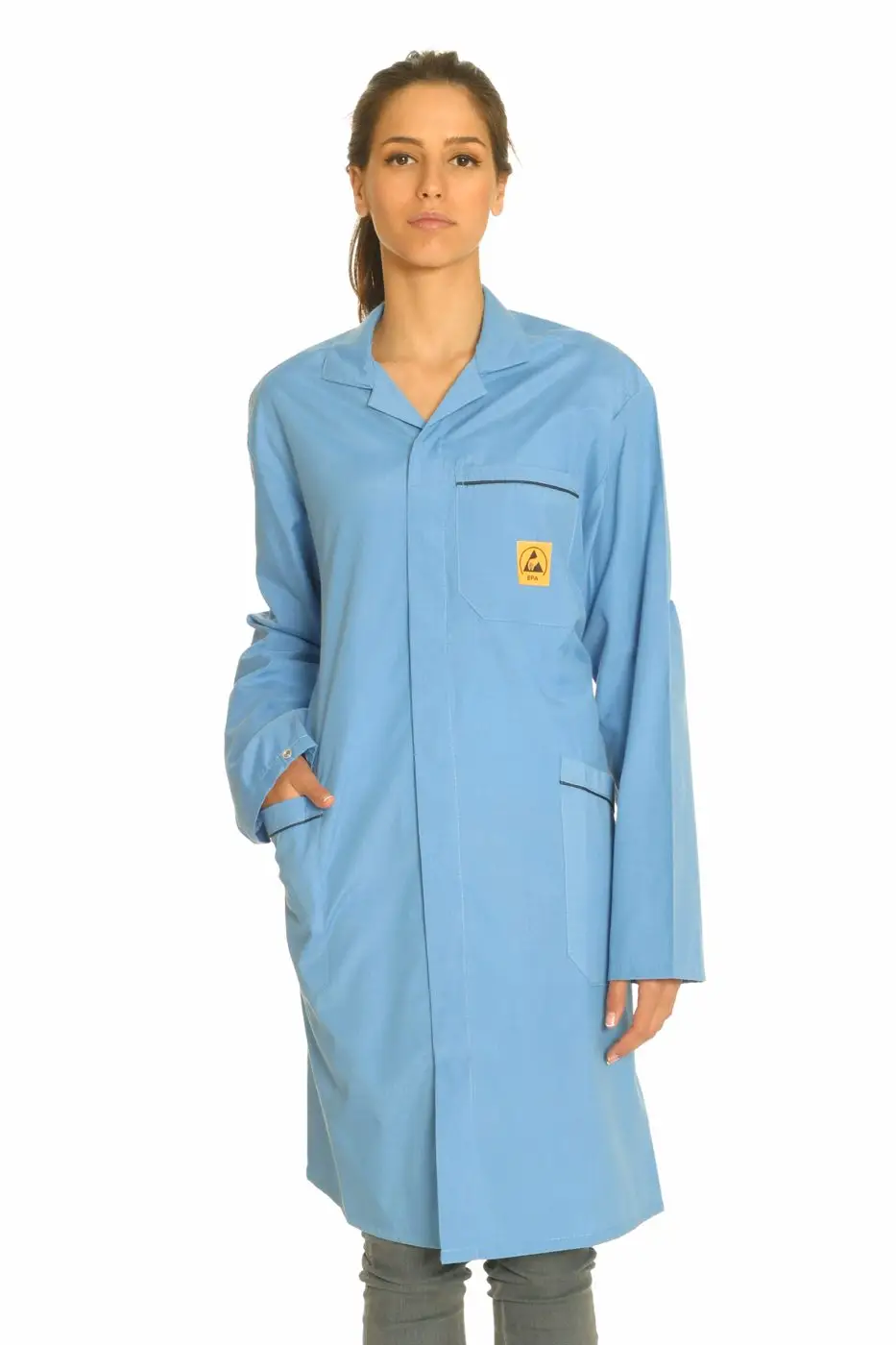

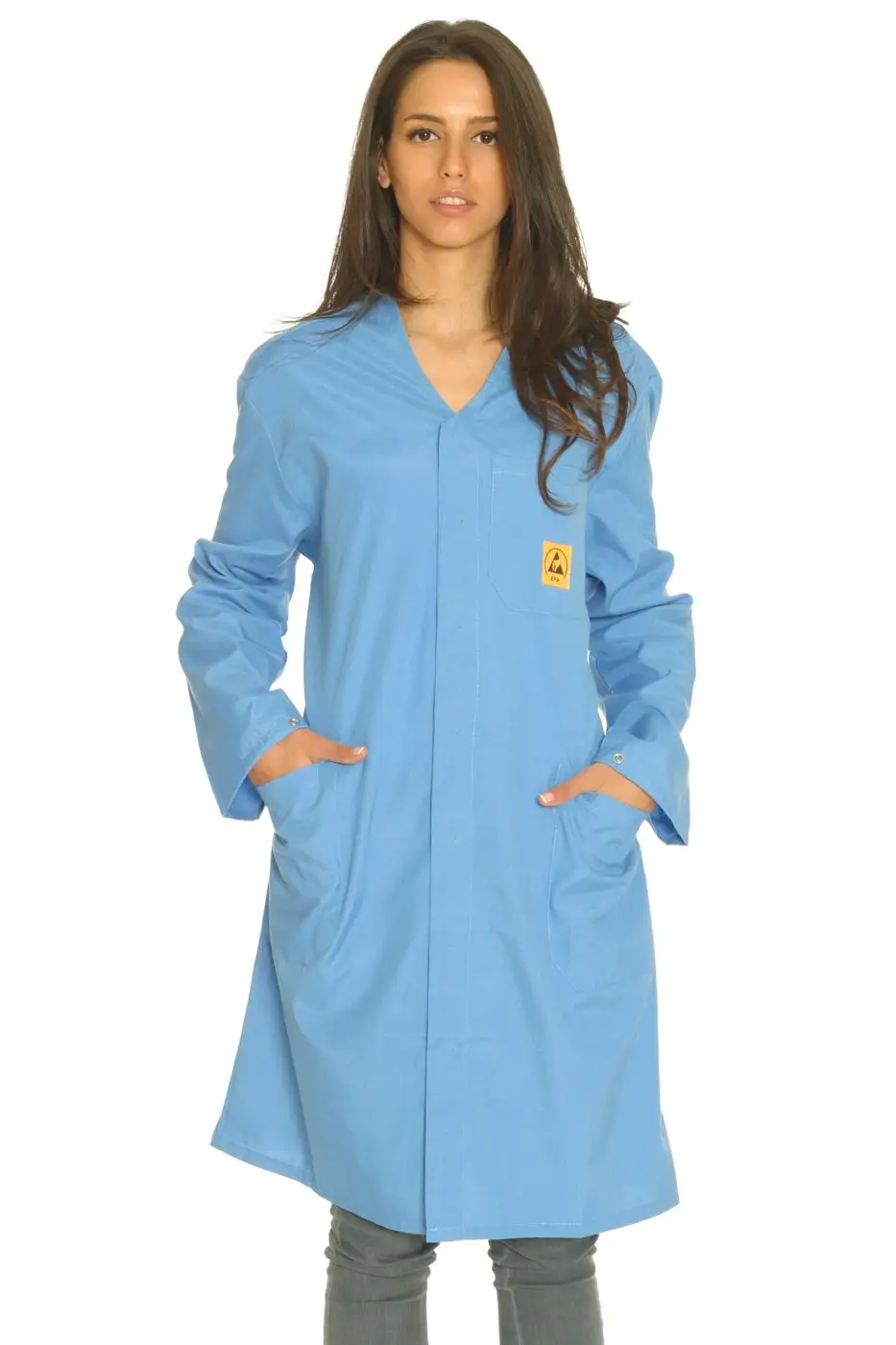

- Light blue
- Royal blue
- Green

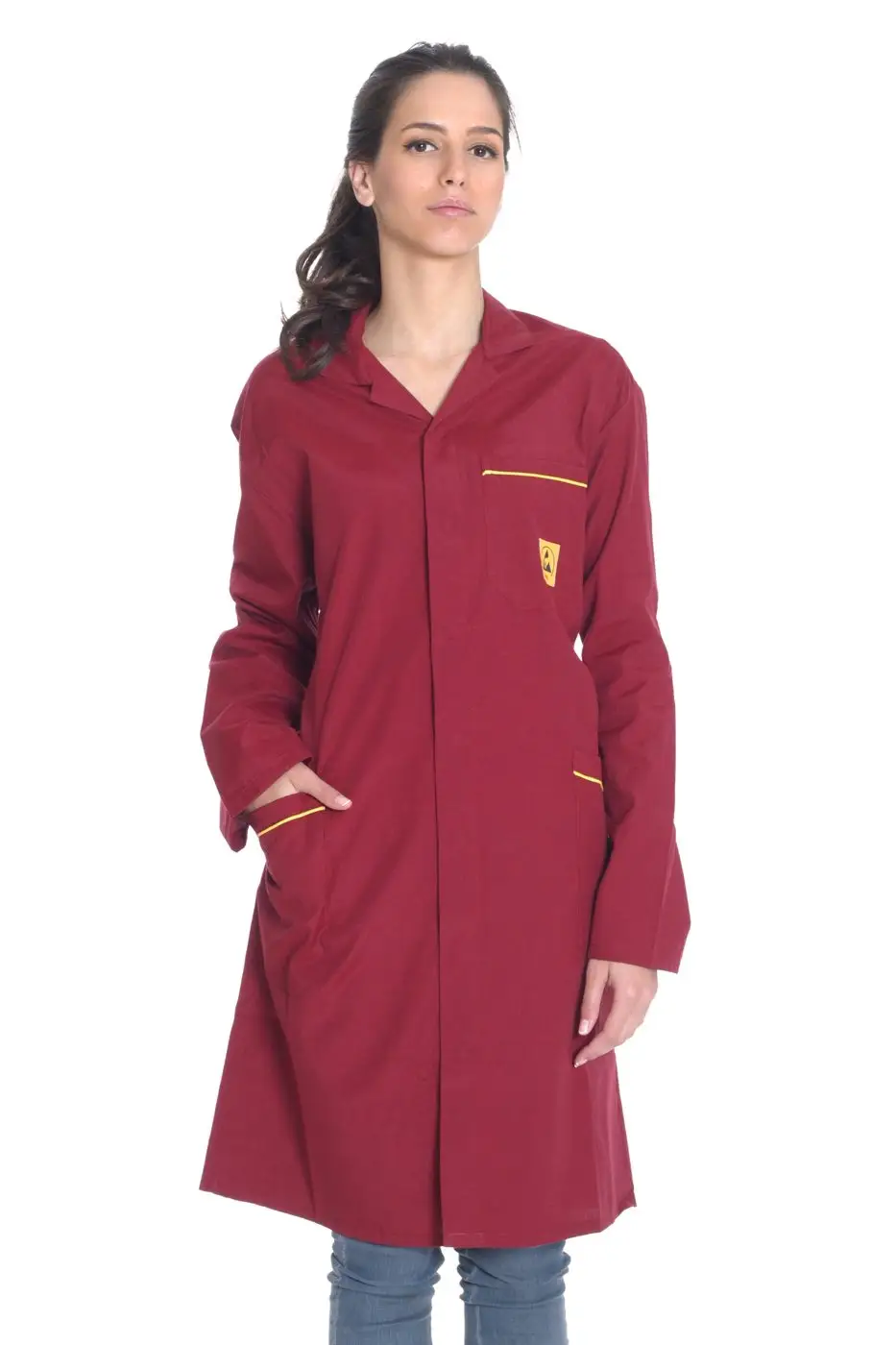

- Burgundy
- Black

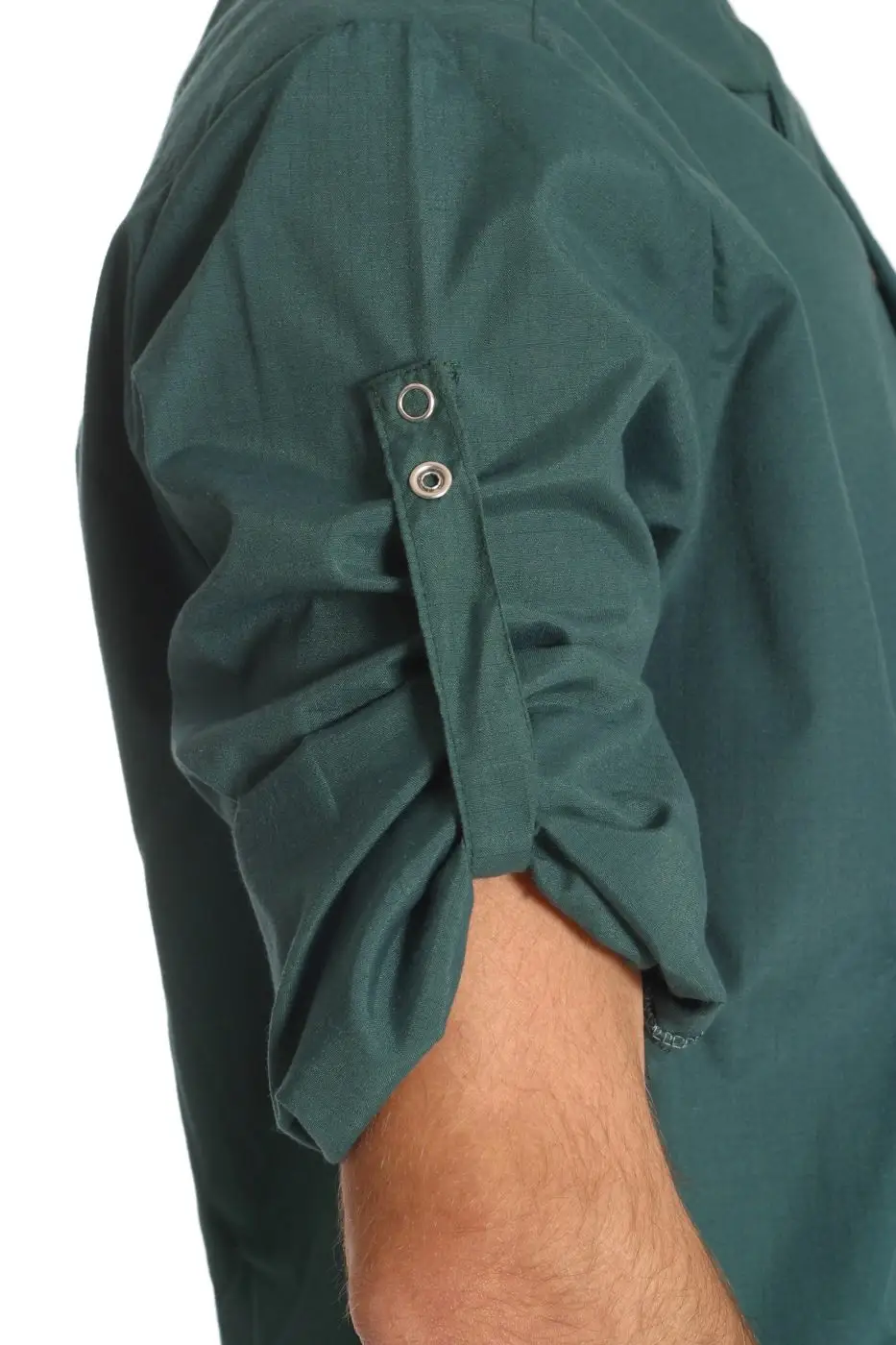

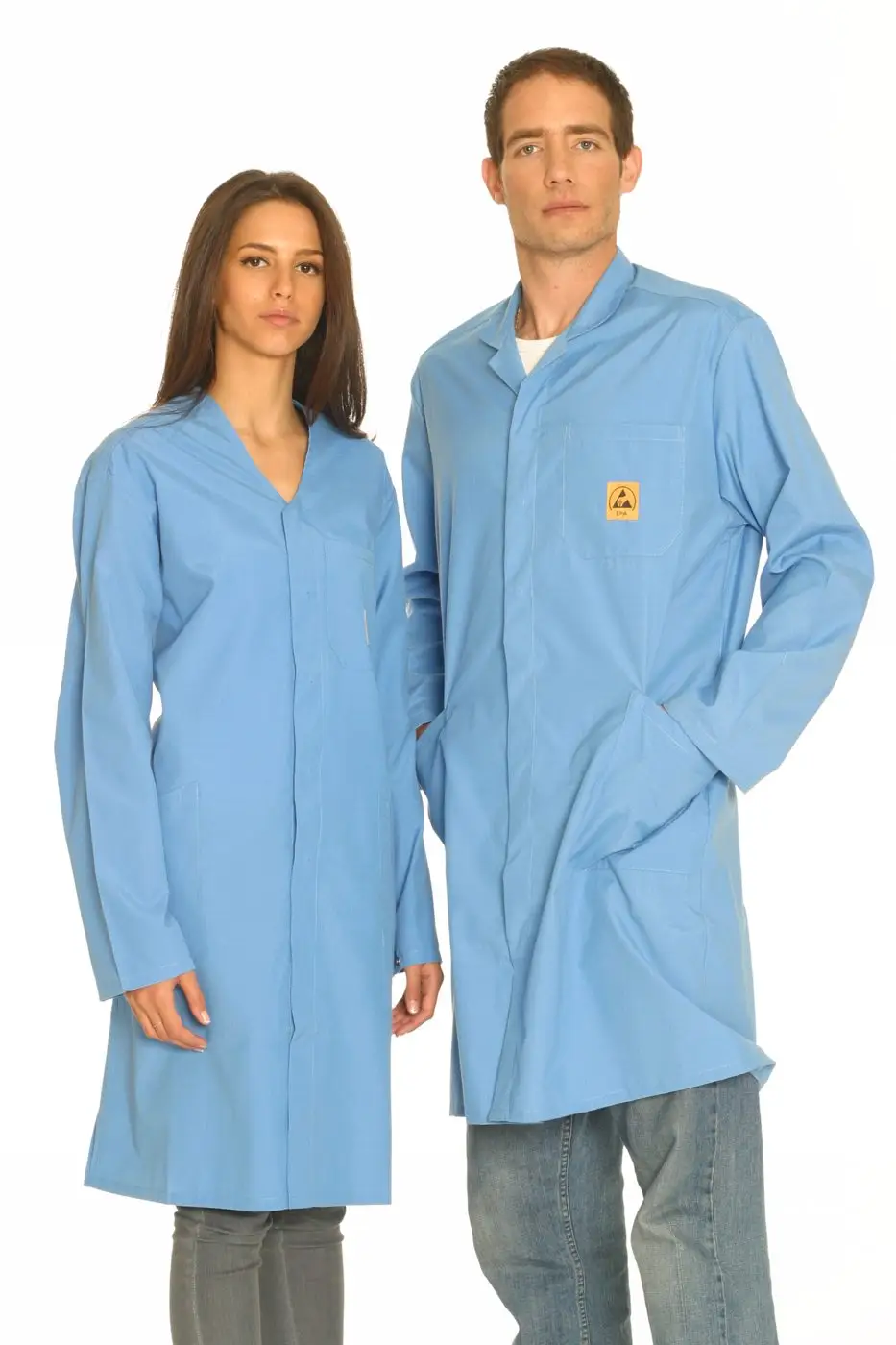

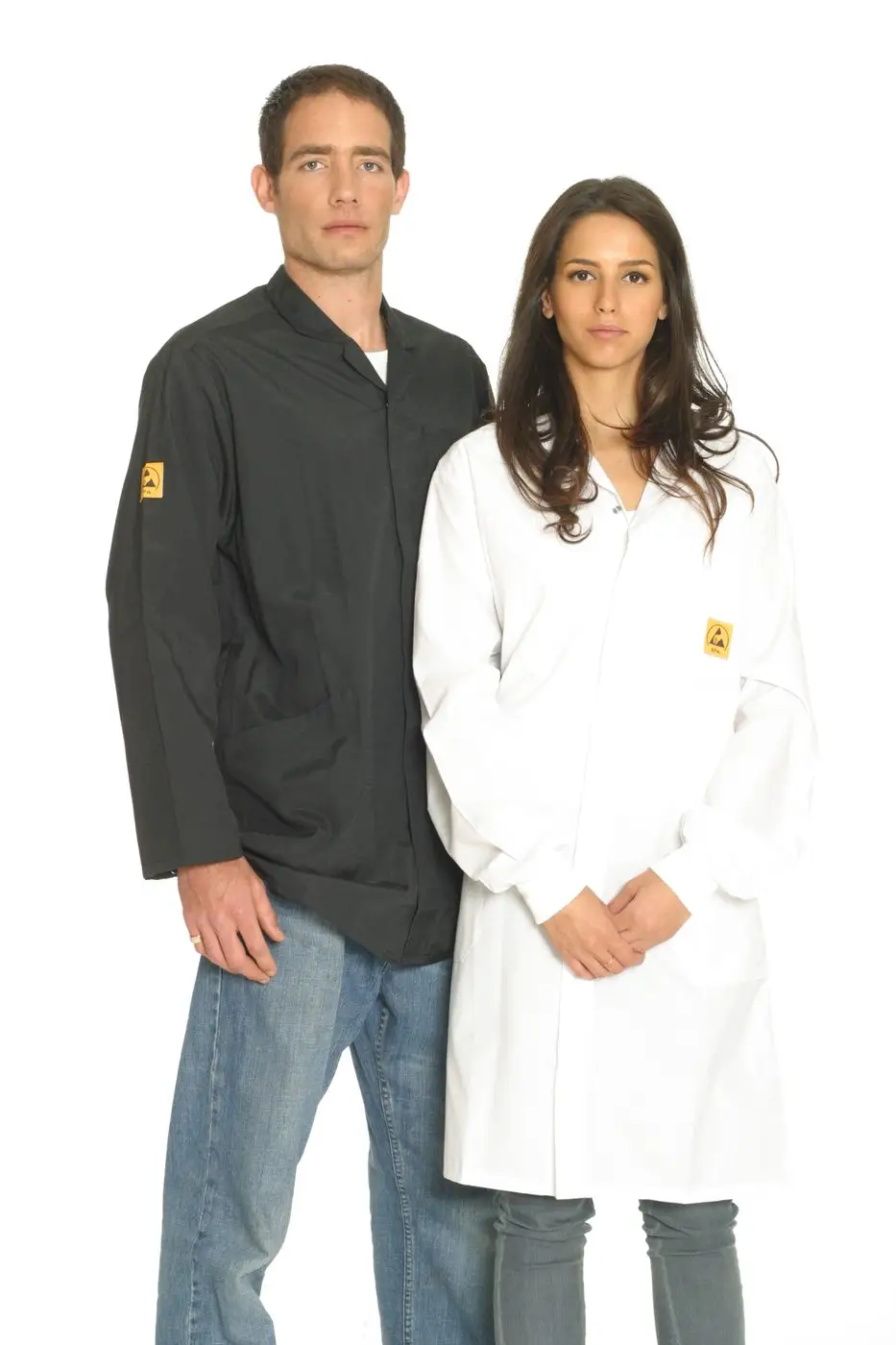

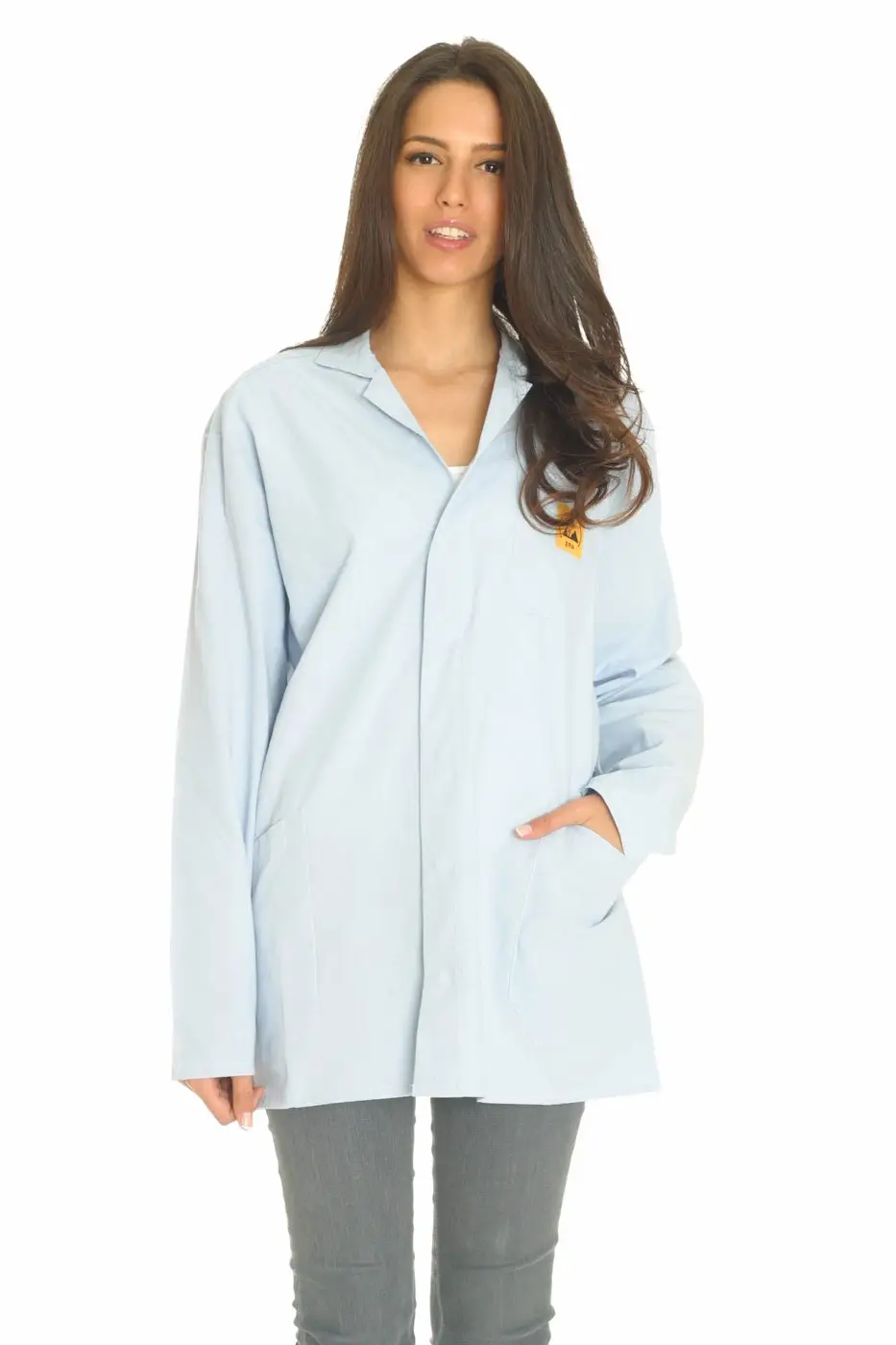

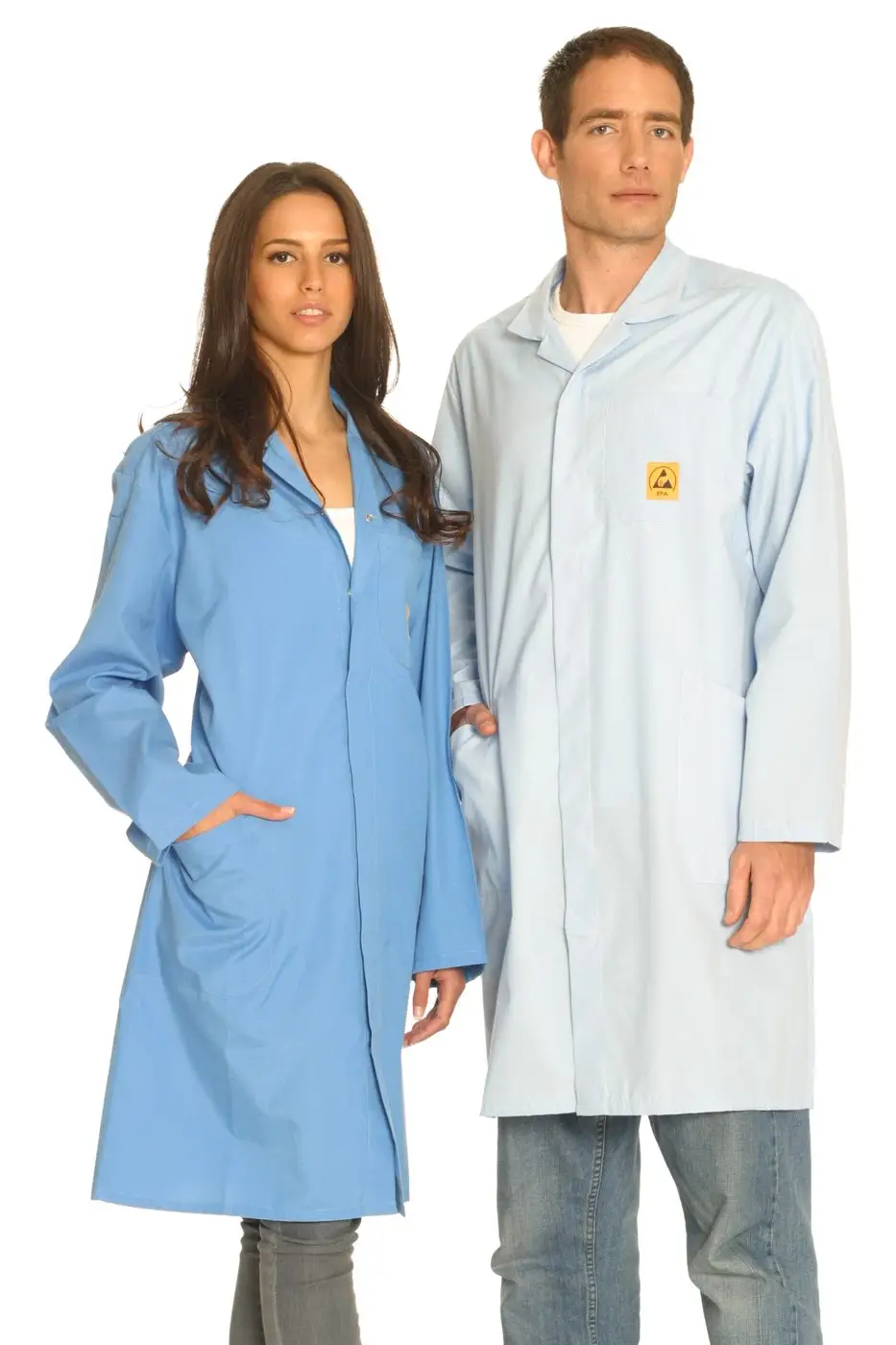

Catalogue colours include white, light blue, royal blue, green, burgundy and black. Further colours are made to a minimum.
MOQ depends on the product, ask us.
Tested by STFI (Sächsisches Textilforschungsinstitut, Chemnitz, Germany).
Construction options
- Half length
- Three-quarter length
- Long length
- Long sleeve

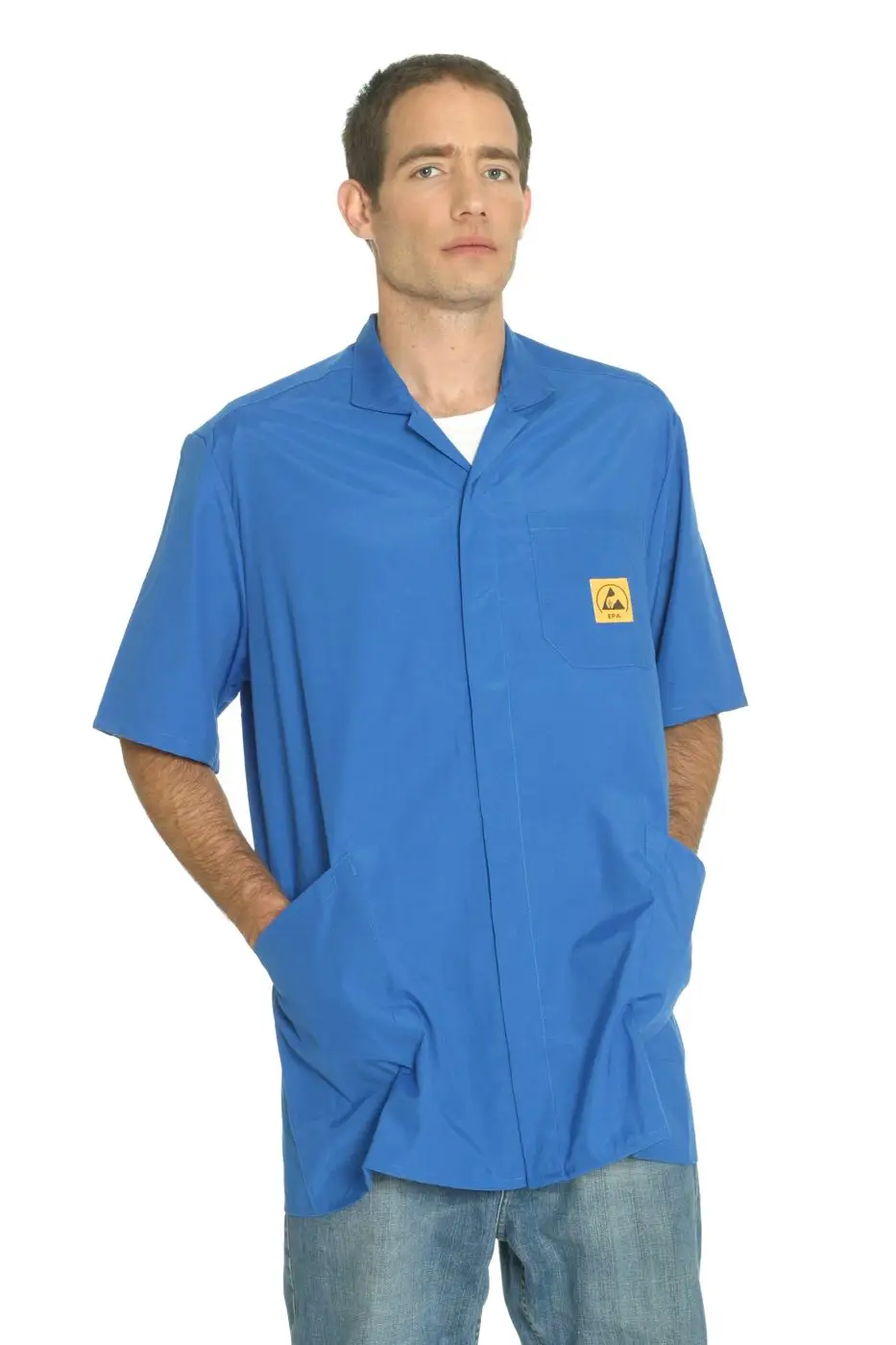

- Short sleeve

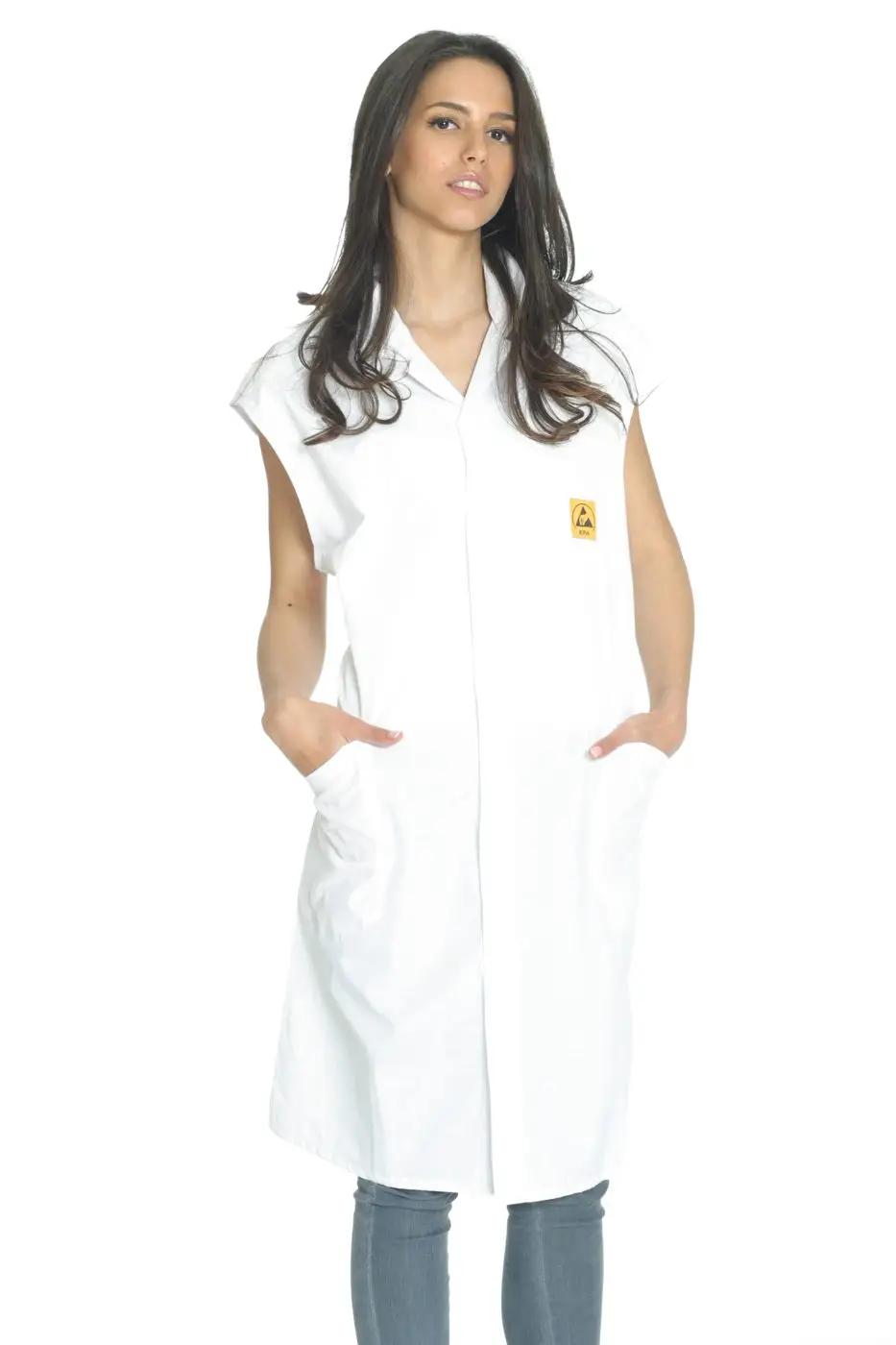

- Sleeveless
- V-neck
- Round neck
- Pockets

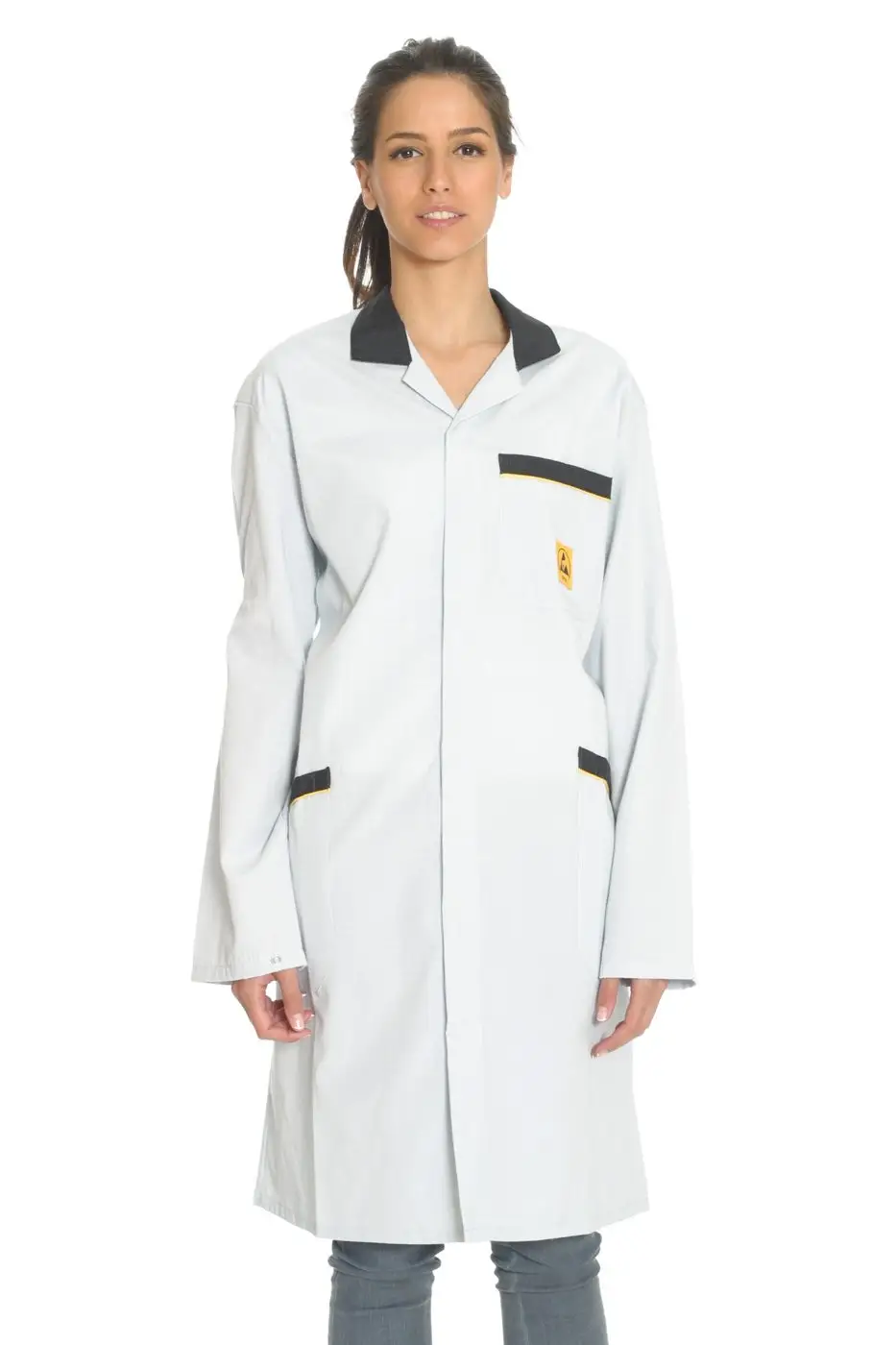

- Contrast trims
- Breast pocket with ESD symbol
- Hidden snap front
Specification
| Composition | 63% polyester / 33% cotton / 4% carbon |
|---|---|
| Fabric weight | 125–130 g/m² |
| Conductive yarn | 4% carbon |
| Conductive grid | 5 mm |
| Surface resistance | 10^5–10^7 Ω |
| Charge decay | 1000 V to 50 V in under 2 seconds |
| Wash temperature | 60 °C |
| Wash durability | 100 washes |
| Standard | IEC 61340-5-1 |
| Tested by | STFI, Chemnitz |
| Fit | Unisex |
Other garments
Send the programme.
Garments, fabric, or a private label. We reply by email.
